Electric Car Drive Single Sided Aluminum PCB
  • Electric Car Drive Single Sided Aluminum PCBElectric Car Drive Single Sided Aluminum PCB
  • Electric Car Drive Single Sided Aluminum PCBElectric Car Drive Single Sided Aluminum PCB
  • Electric Car Drive Single Sided Aluminum PCBElectric Car Drive Single Sided Aluminum PCB

Electric Car Drive Single Sided Aluminum PCB

Huaerkang PCB source factory manufacturer, the factory ships directly, the price is cheaper, located in Guangdong, China, a coastal city with convenient transportation, ensuring that the products can arrive at the customer's designated address in time. The product complies with UL standards and has obtained UL certificate, certificate number E474851. The Electric Car Drive Single Sided Aluminum PCB has passed IATF16949 quality system certification, and the quality is guaranteed, providing buyers with better quality products.

Send Inquiry

Product Description

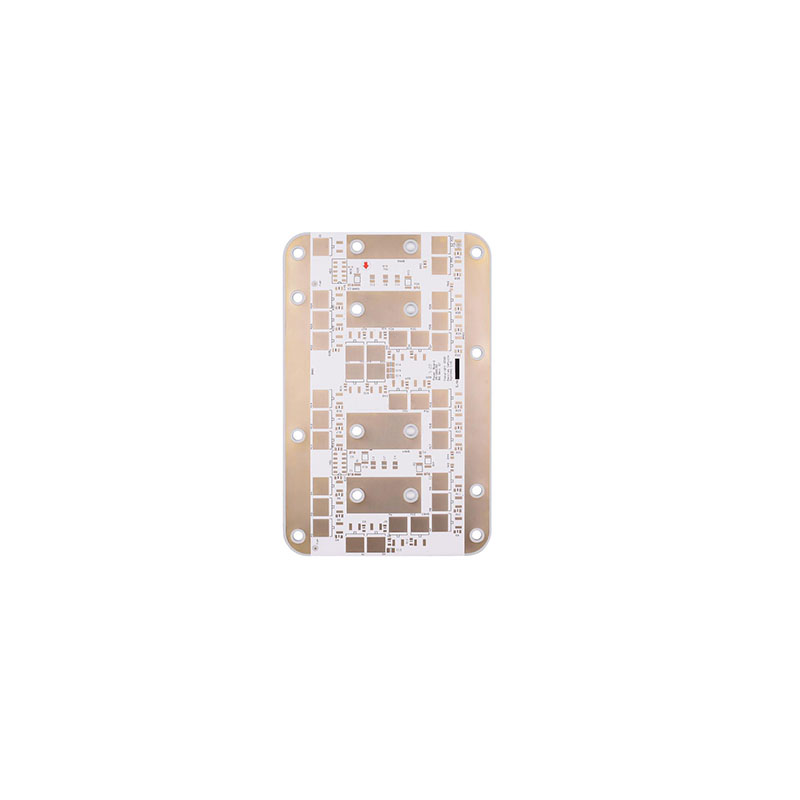

Huaerkang's Electric Car Drive Single Sided Aluminum PCB has excellent heat dissipation design, large-area thermal pads and 2mil surface immersion gold process design, combined with a specially formulated insulating layer (thermal conductivity: 8W/m.k), it allows you to The heat-dissipating MOS tube can fit more perfectly to the board surface, and the generated heat energy is transferred to the heat-dissipating aluminum layer faster, thereby extending the service life of the product.

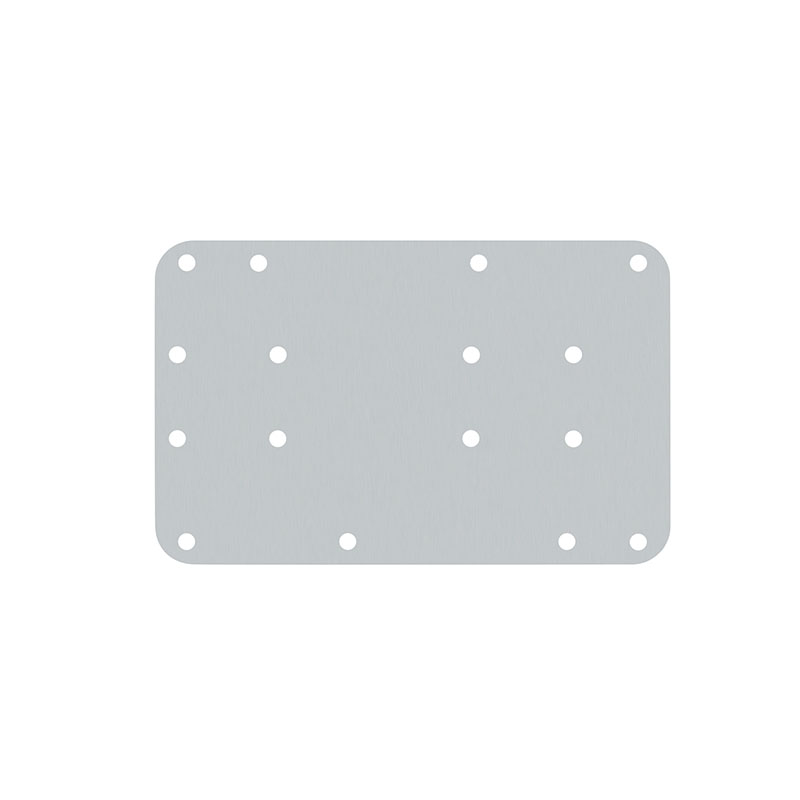

Electric Car Drive Single Sided Aluminum PCB uses 4OZ line copper thickness to meet the customer's design needs to withstand greater operating current. Laser molding is used to ensure that the offset tolerance of components can be controlled to ±0.075mm, allowing the positioning flat-head screws to be perfectly embedded into the board. There is no metal hole drilled or hole edge deformation caused by punching on the back of the laser-formed hole, allowing the heat-dissipating aluminum plate to contact the heat sink with the largest area, allowing for faster heat conduction. The welding pads are treated with immersion gold, which is more beneficial to the welding pads and prevents false soldering and false welding in the patch factory.

Product Specifications

Material Material brand Thermal conductivity Thick Layer Copper surface treatment Test methods
Aluminum POLYTRONICS 8W /m.k 2.0 mm 1-layer 4 oz Sink GLOD AOI,Test rack test

Product Details


Hot Tags: Electric Car Drive Single Sided Aluminum PCB, China, Manufacturers, Suppliers, Factory, IATF16949, UL
